Zyxel Wi-Fi Installation

Thank you for purchasing the Zyxel Wi-Fi access solution from Cegedim Rx. The Zyxel Wi-Fi unit supports solutions like Handout Manager within Pharmacy Manager.

This document provides detailed instructions on how to install the Zyxel Wi-Fi unit, please follow all instructions carefully:

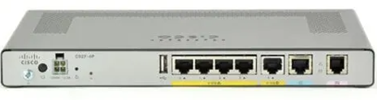

1. Locate your HSCN broadband router. Depending on your connection type this is either a Cisco 857 or Cisco 927 as shown.

   Cisco 857	Cisco 927

2. Take the Zyxel Wi-Fi unit out of the box and position it in a suitable location near the router and a power supply. For optimal signal performance, we recommend placing the unit as high as possible and outside of any cupboards.

3. Connect the power adapter supplied with the Zyxel Wi-Fi unit to the nearest available AC socket.

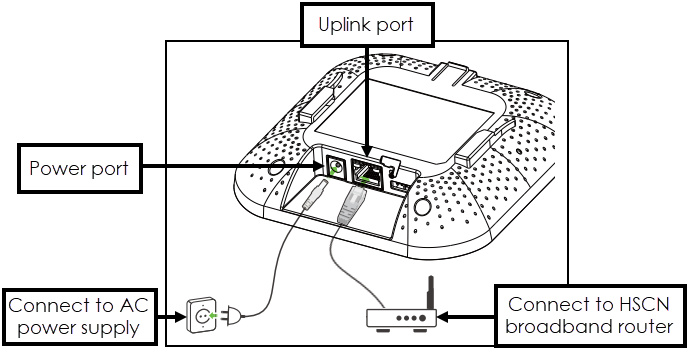

4. Use the provided network cable to connect the Uplink port on the Zyxel Wi-Fi unit to the furthest network port on the left of your HSCN broadband router:

   • Cisco 857 - Port FE1 (ideal), port FE2 or port FE3

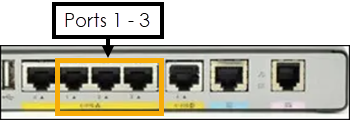

   • Cisco 927 - Port 1 (ideal), port 2 or port 3



   Note - Port FE0 (Cisco 857) or port 0 (Cisco 927) is used for the D-Link network switch, do not remove this.

5. Switch on both the HSCN broadband router and the Zyxel Wi-Fi unit. The unit will undergo a series of updates, indicated by flashing lights, once the device displays a solid blue light, it is ready for use and should be left powered on.
