Adding a Warfarin Diagnosis Indication

You can add a Warfarin Diagnosis Indication to a patient either through Practice Reports or Consultation Manager:

Accessing the INR/Warfarin Diagnosis screen from Practice Reports

To access the New INR/Warfarin Diagnosis screen from Practice Reports:

1. Select Warfarin - Warfarin Monitor:



2. The Warfarin Monitor screen displays:



   Select Scan Patients .

3. The Warfarin Monitor screen displays a list of patients who are currently being prescribed Warfarin but do not display on the Warfarin Monitor list as they do not have a current Indication recorded. Double click on a patients name to add a diagnosis indication.

4. A Confirm screen 'Please enter a diagnosis' displays:



5. Select OK.

6. The New INR/Warfarin Diagnosis screen displays, see New INR/Warfarin Diagnosis screen.

Accessing the INR/Warfarin Diagnosis screen from Consultation Manager

To access the New INR/Warfarin Diagnosis screen from Consultation Manager:

1. Open the patient in Consultation Manager.

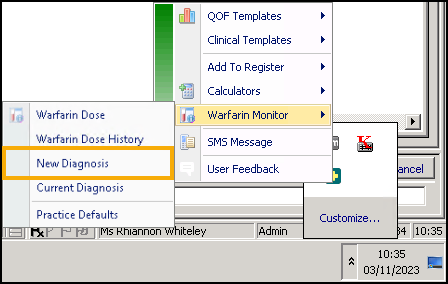

2. From the Windows Notification Area, right click Vision+ and select Warfarin Monitor.

3. Select New Diagnosis:



4. The New INR/Warfarin Diagnosis screen displays.

New INR/Warfarin Diagnosis screen

Relevant Diagnosis clinical terms for the patient display in the History column:

1. Select History alongside the clinical term you wish to use.

2. Historical clinical terms display:



3. Double click on the relevant clinical term.

4. The corresponding indicator displays in the Indication section of the New INR/Warfarin Diagnosis screen with the Start Date set to that of the clinical term:



5. Enter a treatment Enter Date if applicable.

6. Select OK.

The patient is removed from the current list (Scan Patients) and displays in the initial Warfarin Monitor list as a result of them having a current diagnosis indication.
