CHADS2 - AF Stroke Risk Calculator

The CHADS2 - AF Stroke Risk Calculator is a method of calculating stroke risk in patients with Atrial Fibrillation. The patient is allocated points based on their previous medical history in the following areas:

  • Congestive Heart Failure
  • Hypertension
  • Age
  • Diabetes Mellitus
  • Strokes or TIA

The CHADS2 risk score is calculated using the following data:



Condition

Criteria

Points

C

Congestive Heart Failure

Any clinical term starting G580%

1

H

Hypertension

Any clinical term of G2%

1

A

Age

Over 75 years old

1

D

Diabetes Mellitus

Any clinical term of C10%

1

S2

Prior stroke or TIA

Any clinical term of G6%

2

This results in a CHADS2 score of between 0 and 6 which translates to the annual risk of stroke shown in the table below:

CHADS2 Score

Stroke Risk %

0

1.9

1

2.8

2

4.0

3

5.9

4

8.5

5

12.5

6

18.2

Accessing the CHADS2 - AF Stroke Risk Calculator

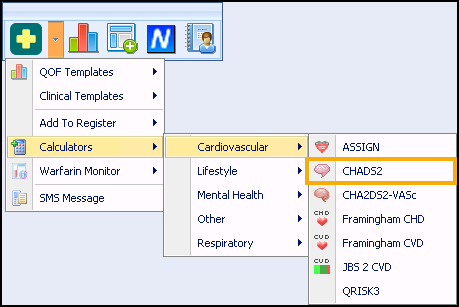

  1. From Consultation Manager, select Vision+ from the floating toolbar and select Calculators - Cardiovascular - CHADS2:

  2. The CHADS2 - AF Stroke Risk Calculator displays:

  3. Complete as required, and record the score by selecting OK or select OK & Attach to record the score and questionnaire to the patient's record:

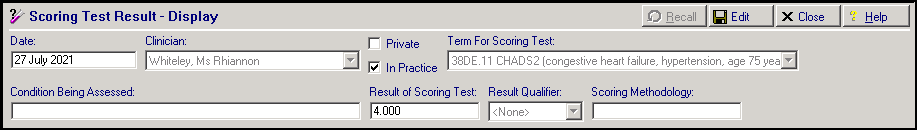

  4.  The appropriate clinical term saves to the patient's record:

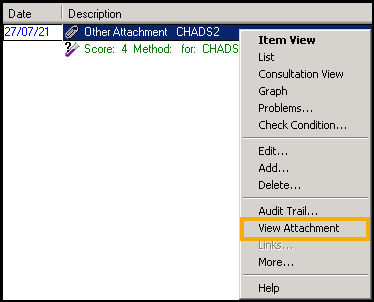

  5. To view an attachment, from patient's record, right click on the attachment entry and select View Attachment. The attachment displays as a PDF:

Note - To print this topic select Print in the top right corner and follow the on-screen prompts.
