Tests Results on Management Plans

If you click with the right mouse on a pathology or X-ray heading on the Medical Records Overview column of Patient Records, and select Management Plan, you can view test results within Management Plans. Categories include:

• Diagnostic Imaging (including X-rays)
• Biochemistry Routine
• Biochemistry Hormones
• Biochemistry Other
• Haematology
• Microbiology
• Serology and Immunology
• Other Pathology Tests (including cervical smears)
• Diagnostic Tests.

On the grid, each column represents a date, so by reading across the rows where the values are shown for each test type, you can see the trend of data. Hovering with the mouse over a cell pops up a summary. Results can be shown as icons or numerically (set in Consultation Options Setup ).

Initially the plan only shows rows where there is data.

Click on the top left cell once to expand the Management Plan and show all rows, including those where there is no data. Click again to close up.

Right mouse click gives you the usual options, including Add, and also that of Graph.

To add a result, single click on the far right cell on the line of the required result to display its Add screen.

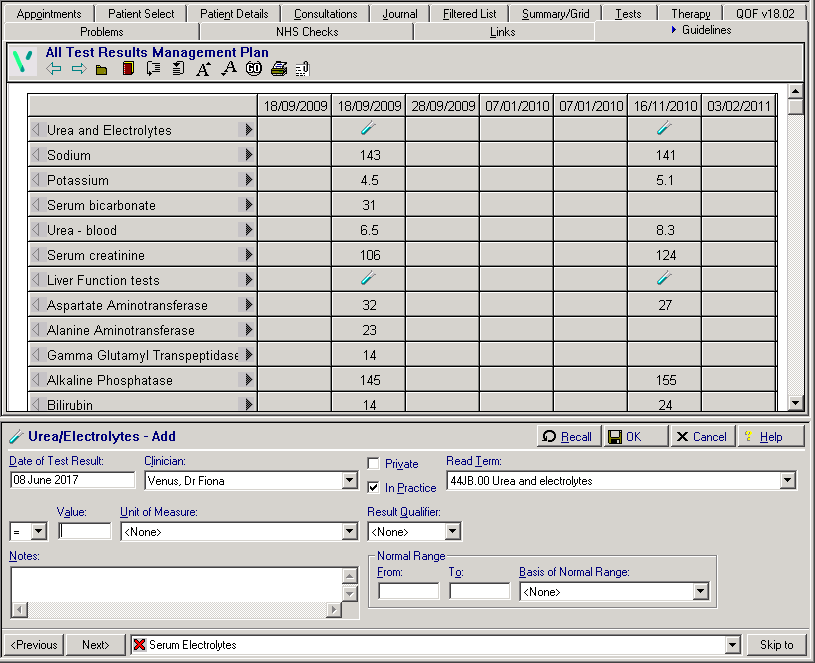

All Test Results Management Plan
